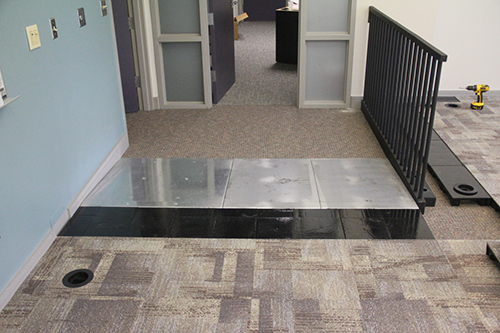

Ramps and Railing to transition from sub-floor to the low profile raised flooring

Ramps and railings (where required) are included in the Powerflor system.

Multiple ramp options can be provided to meet any floor configuration, including applications where ADA compliant ramps are required.

Railings are included wherever applicable.

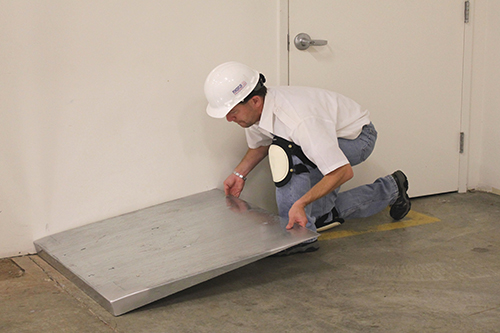

Ramps are required for access to our 3" nominal height raised flooring.  All ramping is included in the Powerflor system and designed to meet each customers application.  ADA compliant ramping is provided wherever specified.

Ramp Slope / Length / Height:
1/8 Slope = 24" L x 3" H,    1/12 Slope = 36" L x 3" H,   1/20 Slope = 54" L x 3" H
Ramp Width:
Ramp widths are built to fit the specified dimension.
Ramp Material

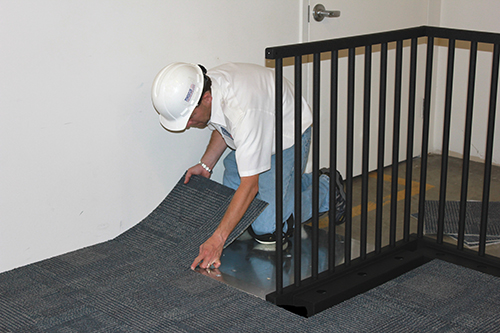

Galvanized Steel (Carpet is installed on-site after ramp placement)



By clicking on the link above, you can provide us with the information detailed below.

Begin by sending us a dimensional drawing of your room.­ Email­ the drawing to: Info@custom-products.com.­

Whenever possible, indicate the quantity and approximate locations for the power, data or A/V outlets as needed for your application. Once this information is received, you will be contacted by a design engineer to­ confirm your requirements and answer your questions.­

Next, we will provide you with a preliminary shop drawing for your review.­ Any changes will be noted and amended drawings will be resubmitted.­ When all changes have been completed, a final drawing will be provided for customer approval and signature.­ A quote will be presented based upon the final drawing.­ Our quotes will include materials, freight and complete on-site installation.­ There will NEVER be any hidden costs.­ Should you require changes to power / data ports­ prior to, during or after installation, very minor charges may apply.­ We will carefully discuss all options­ with you during the design / quote process.

Should you have questions as you gather this information together, please give us a call at 888-444-1202 or 651-452-0113
