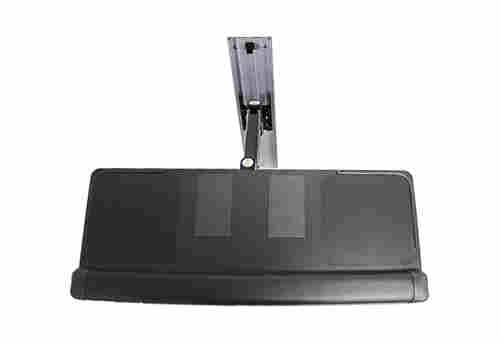

60218-K TRACK MOUNT KEYBOARD PLATFORM

The #60218-K consists of a track mounted extension arm with a phenolic keyboard platform.  Extension arms are available in 10" or 18" lengths.  The adjustable keyboard platform mounting bracket provides swivel and tilt functions to provide perfect positioning for your application.  The wall mounted track is 22" long and can be mounted either vertical or horizontal.  The aluminum track allows the arms to be easily located and moved along the length of the track, as needed. Multiple tracks can be mounted end-to-end for additional versatility. Arm color choices are light gray or black. The phenoic keyboard is only available in black.



Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



BUY
Track Mount - Keyboard Platform + 10 inch Extension Arm
24
60218K 10
BUY
BUY
Track Mount - Keyboard Platform + 18 inch Extension Arm. Includes 22" Track
24
60218K 18
BUY
BUY
Track Mount - Keyboard Platform + 6.5 inch Extension Arm. Includes 22" Track
24
60218K 65
BUY



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
Range of Motion
Extension Arm: Left / Right Pivot. Keyboard: Left / Right Pivot, Forward / Back Tilt. The optional mouse tray has it's own independent tilt & pivot function.
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60218-K (See Order Guide tab for specifics)
Weight Capacity:
24 lbs.
Extension Arm Dimensions:
6-1/2" Arm: 6"  10" Arm: 9-1/2"  /  18" Arm: 17-1/2" (from center of pivot points)
Keyboard Dimensions:
25" W x 10" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS



  • Keyboard Platform Mounting Bracket (21-14)
  • Extension Arm 6.5" (22-06-1), 10" (22-03-3), or 18" (22-03-4)
  • Track Mounting Bracket (25-50)
  • Keyboard Platform and Mouse Tray (24-31P)
  • 22" Aluminum Track (25-50-16)
  • Hardware
