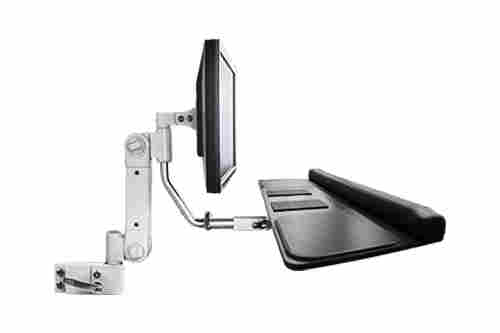

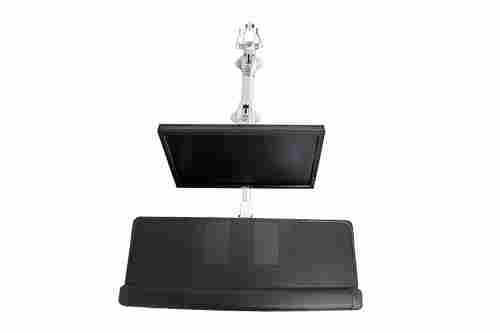

60239-PA POLE MOUNTED ADJUSTABLE ARM WITH KEYBOARD PLATFORM

The 60239-PA series combines the adjustable arm with the drop down phenolic keyboard platform.

The adjustable arm provides vertical adjustment from vertical (up) to horizontal (down) and full left / right pivot.  The LCD Display tilts forward / back and can rotate portrait / landscape.  The keyboard support bracket provides independent tilt and pivot functions.  Combined, the monitor and keyboard can be positioned to meet most any application.

Mounting solutions available for 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Weight capacity: 20 lbs.  Arm colors: Black or light gray.  Keyboard color: Black only.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



BUY
Pole Mount (1.5 inch Dia) Adjustable Arm + Keyboard Platform
20
60239PA 15 520
BUY
BUY
Pole Mount (2.0 inch Dia) Adjustable Arm + Keyboard Platform
20
60239PA 20 520
BUY





Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arm: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation. Keyboard Platform: Left / Right Pivot, Forward / Back Tilt
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60239-PA (See Order Guide tab for specifics)
Weight Capacity:
20 lbs. (Determined by LCD display weight)
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Keyboard Platform Dimensions:
25" W x 10" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





  • Pivot Bracket, Attach Monitor to Arm (21-01)
  • Adaptor plate,converts 75 x 75mm to 100 x 100mm (21-02)
  • Keyboard Platform Mount (21-13D)
  • Keyboard Platform (24-31P)
  • Adjustable Arm (22-04-3) Light Duty or (22-04-5) Heavy Duty
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)
  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
