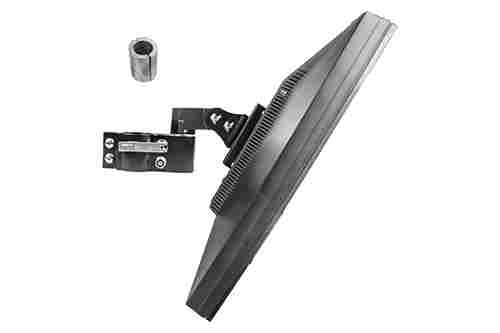

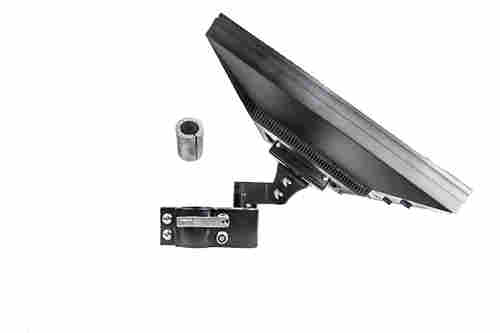

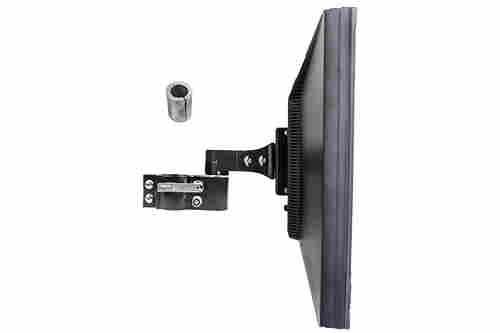

60216-P POLE MOUNTED COMPACT MONITOR ARM

The 60126-P is a compact wall mounted configuration for mounting your display close to the wall (Approximately 6").

This mount will provide left / right pivot as well as forward / back tilt and portrait / landscape screen positioning.  Weight capacity: 5-24 & 24-28 lbs.

Mounting solutions available for 1.5" or 2" diameter tubing (poles).  Note: If your poles are built from pipe instead of tubing, the standard pole mount brackets may not be compatible due to outside dimension variance.  CPS can provide poles that are worksurface or floor mounted. Arm color choices are light gray or black. Available in black or light gray.

CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Request Information



Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



BUY
Pole Mount (1.5 inch Dia) Compact Arm (HD)
24-28
60216P 15 H
BUY
BUY
Pole Mount (1.5 inch Dia) Compact Arm
5-24
60216P 15 L
BUY
BUY
Pole Mount (2.0 inch Dia) Compact Arm (HD)
24-28
60216P 20 H
BUY
BUY
Pole Mount (2.0 inch Dia) Compact Arm
5-24
60216P 20 L
BUY



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
 LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60216-P (See Order Guide tab for specifics)
Weight Capacity:
5-24 or 24-28 lbs. (Determined by LCD display weight)
LCD Display Mount
4" L (Pivot point to back of LCD Display)
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





  • Pivot Bracket, Attach Monitor to Arm (21-01)
  • Adaptor Plate, converts 75 x 75mm to 100 x 100mm. (21-02)
  • Pole Mount Bracket (25-40-Q) or (25-42-Q)

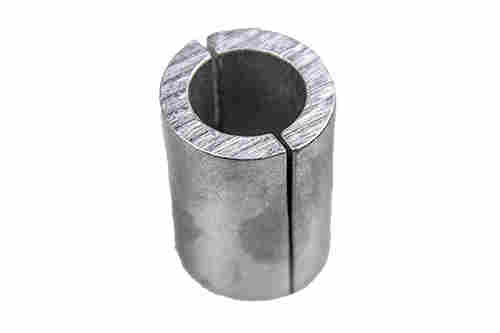

  • Split Sleeves (25-42-SS) Based on Pole Mount Diameter
  • Hardware
