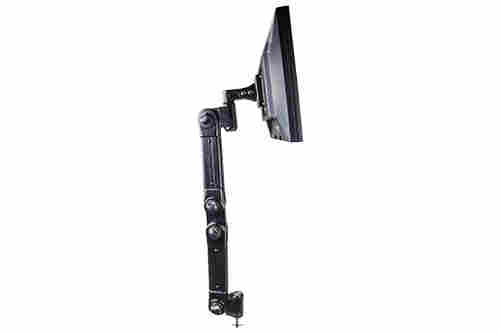

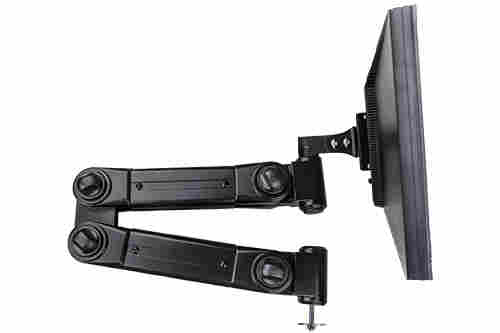

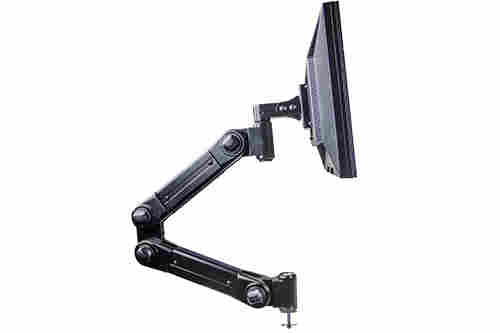

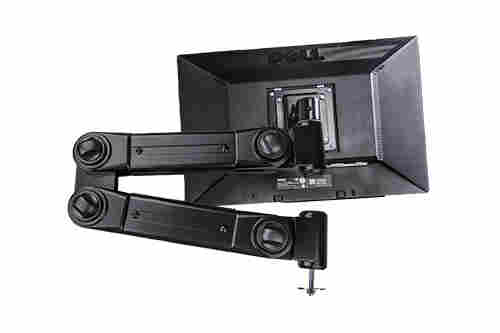

60228-GP DUAL ADJUSTABLE, VERTICAL RAISIBLE ARM

The 60228 is a rather unique arm configuration.  Primarily used on top of a worksurface, this arm utilizes 2 adjustable arms to provide vertical height positioning for LCD Displays, laptops, etc.

This arm will support equipment from 5-15 lbs.

Secured to the worksurface with our grommet pin. (This arm can NOT be mounted to a pole)

Overall length of arm: 27".

Colors: Black or Light Gray.



Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products





BUY
Worksurface Mount Dual Adjustable Vertical Rise Arm w/Grommet Pin
5-15
60228GP 515
BUY



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable - Raisable Arm: Left / Right Pivot, Unique Vertical adjustment. LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.





Part Number:
60228-GP (See Order Guide tab for specifics)
Weight Capacity:
5-15 lbs
Adjustable Arm Dimensions:
Dual 13" L (Overall length: 27")
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





  • Pivot Bracket, Attaches LCD Display to Arm (21-01)
  • Adaptor plate, converts 75 x 75mm to 100 x 100mm (21-02)
  • Dual Adjustable Arm Vertical Raisable  (22-11-33)
  • Grommet Pin (25-22)
  • Hardware
