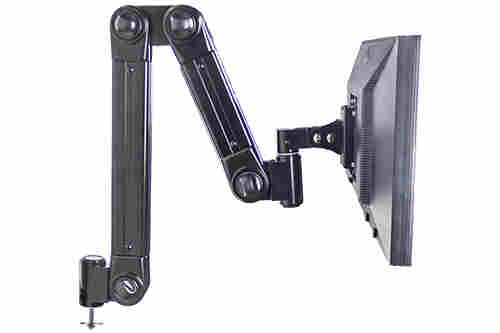

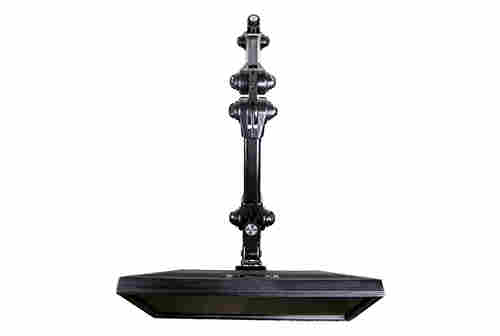

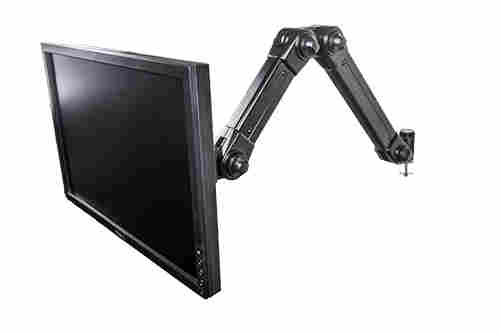

60226-GP WORKSURFACE MOUNTED, DUAL ADJUSTABLE MONITOR ARM

The 60226 Dual adjustable arms provide a full 180 degree of vertical adjustment (Vertical up to vertical down).

Maximum weight capacity for this arm is 12 lbs, so it is designed for use with smaller monitors.

Arm will rotate 180 degrees left / right.  The monitor can pivot full left right, tilt forward / back and rotate portrait / landscape.

This arm is mounted to the worksurface using our grommet pin or can be mounted to a pole.  CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Arm colors: Black or light gray.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.

Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



BUY
Worksurface Mount - Dual Adjustable Arm - Grommet Pin
2-12
60226GP 212
BUY



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arms: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). LCD Display: Left / Right Pivot, Forward / Back Tilt, Portrait / Landscape Rotation.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60226-GP (See Order Guide tab for specifics)
Weight Capacity:
2-12 lbs
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point) x 2 arms
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





  • Pivot Bracket, Attaches LCD Display to Arm (21-01)
  • Adaptor plate, converts 75 x 75mm to 100 x 100mm (21-02)
  • Dual Adjustable Arm (26-31-52)
  • Grommet Pin (25-22)
  • Hardware
