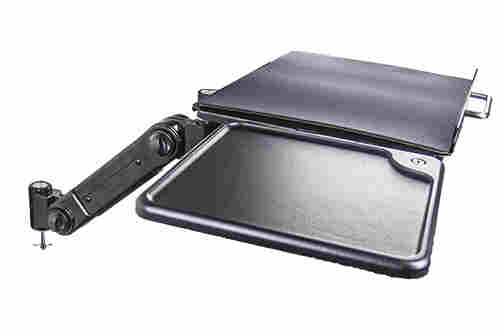

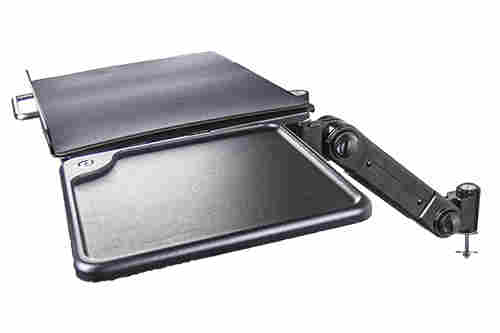

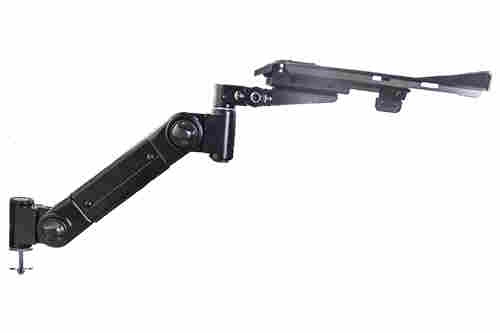

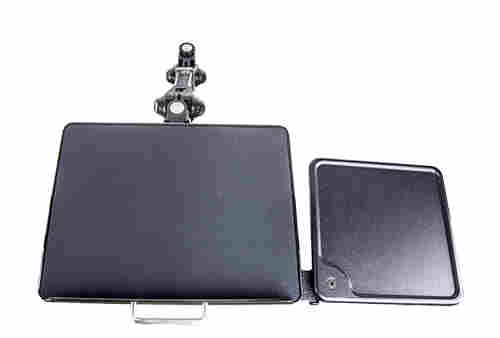

60223-G WORKSURFACE MOUNTED LAPTOP PLATFORM WITH ADJUSTABLE ARM

The #60223-G is a worksurface mounted (metal) laptop platform configured with the adjustable arm for easy vertical positioning.

Weight capacity for this system is 5-15 lbs which supports most laptop models.  If more weight capacity is required, contact CPS.

The optional mouse tray will pivot and tilt independent of the laptop platform.

The adjustable laptop platform mounting bracket provides swivel and tilt functions to provide perfect positioning for your laptop computer.

Mounted to the worksurface using our grommet pin (requires holes drilled in worksurface to mount) or pole mounted.  CPS can provide poles that are worksurface, floor or ceiling mounted.  Pole Options

Arm color choices are light gray or black.

Reference the ORDER GUIDE tab in the section below to find the specific arm configuration that meets your application requirements.



Mouse Tray Options



P24-12-10AB Mouse Platform

Classroom Training Table Hard Rock Maple

Bolts

Mouse Pad

Wire Mouse Catch



 Sales through the online store are currently available only to businesses within the 48 continental US states. These products are not available to the retail/consumer markets. Business-to-business only. Contact CPS if you wish to place an order and are located outside of that geographical area. PH: 651-452-0113 or email to Email Custom Products



Worksurface Mount (Grommet Pin) - Adjustable Arm + Laptop Platform
5-15
60223G AL
Optional Mouse Tray, Black only
P24 12 10 AB



Modular Design
These arm systems consist of modular components that can be added or removed to meet the users specific application requirements.  Supporting your LCD display, keyboard, laptop or some other type of equipment can be accomplished with a variety of arm configurations found throughout this product section.
Material
Manufactured using high quality aluminum die castings and aluminum extrusions.  Built for commercial and industrial applications in a wide variety of industries, including manufacturing, electronics, medical, military, government, schools and universities.  The keyboard platform is manufactured from high impact phenolic for durability and cosmetic appeal.  Wrist rest is included.  The adjustable mouse tray is an option that can be ordered separately.
Finish
Industrial quality powder coat finish.  Most components available in light gray or black.  Keyboard platform is black only.
VESA Compatible
75mm or 100mm
Range of Motion
Adjustable Arm: Left / Right Pivot, 90-degree Vertical adjustment (vertical up to horizontal down). Laptop Tray: Left / Right Pivot, Forward / Back Tilt.
Easy to Install
Installation takes less than 15 minutes using common hand tools.







Part Number:
60223-G (See Order Guide tab for specifics)
Weight Capacity:
5-15 lbs.
Adjustable Arm Dimensions:
15" L (Pivot point to pivot point)
Laptop Tray Dimensions:
11-1/2" D x 14-1/2" W
Mouse Tray Dimensions
9" W x9" D
Color / Finish:
Black or Light Gray Powder Coated Finish
Warranty:
1 year from date of purchase
Shipping Method:
FedEx or UPS





  • Laptop Platform Mounting Bracket (21-14)
  • Laptop Platform (24-21)
  • Adjustable Arm (22-04-3)
  • Grommet Pin (25-22)
  • Optional Mouse Tray (P24-12-10-B)
  • Hardware
